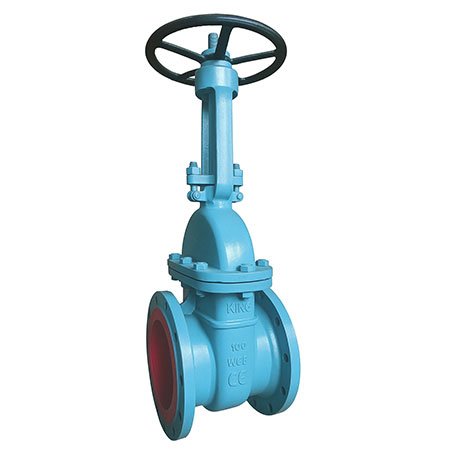

Gate Valve

BODY & BONNET: CAST IRON|CAST STEEL | SS 304 | SS 316 | SS 304L | SS 316L | WC6 |WC9 |

TRIMS: 13 CR | 18 CR 8 NI

MFG STD: API 600

TEST STD : API 598

END CONNECTION: FLANGED END | BUTTWELD END

HYD TEST PRESSURE: BODY: 425 PSIG (30 KG/CM2)

SEAT: 300 PSIG (21 KG/CM2)

SIZE RANGE: 25MM TO 600 MM

OPERATION: MANUAL | GEAR

CLASS: ASA 150# | 300# | 600#

TYPE: OUTSIDE SCREWE AND YOKE TYPE (OS & Y TYPE)

Category:

Description

King Valves is a leading and trusted manufacturer of premium-quality Gate Valves, delivering reliable flow control solutions for a wide range of industrial applications. Based in Ahmedabad, India, we specialize in producing valves that meet the highest standards of performance, durability, and safety.

Our gate valves are designed for efficient on-off control in pipelines, offering minimal pressure drop and full-bore flow when fully open. The robust wedge gate design ensures a tight seal, making them ideal for industries such as oil & gas, water supply, power generation, chemical processing, and manufacturing.

Manufactured using high-grade materials with superior resistance to corrosion, erosion, and wear, King Valves’ gate valves ensure dependable operation even under high pressure and temperature conditions. Their simple yet sturdy design reduces maintenance requirements, increases service life, and provides consistent performance in critical operations.

At King Valves, each product undergoes strict quality checks and precision machining to guarantee operational excellence. We offer a wide range of sizes, pressure classes, and material options, along with customized solutions tailored to specific project needs.

With our commitment to engineering innovation and customer satisfaction, King Valves has earned a strong reputation as a trusted supplier of gate valves in India and across global markets.

Reviews

There are no reviews yet.

Be the first to review “Gate Valve”

Your email address will not be published. Required fields are marked *

PART NO. PART NAME WCB WC6 WC9 CAST IRON CF8 CF8M
01 BODY & BONNET A 216 WCB A 217 WC6 A 217 WC9 IS 210 GR FG 200 A 351 GR CF8 A 351GR CF8M
02 WEDGE ASTM A 217 GR CA15 A 217 WC6 A 217 WC9 ASTM A 217 GR CA15 A 351 GR CF8 A 351 GR CF8M
03 SEAT RING ASTM A 217 GR CA15 A 182 F11 A 182 F22 ASTM A 217 GR CA15 ASTM A 351 GR CF8 ASTM A 351 GR CF8M
04 STEM ASTM A 276 T-410 ASTM A 276 T 304 ASTM A 276 T 316
05 BACK SEAT BUSHING OVERLAY ASTM A 276 T 304 ASTM A 276 T 316
06 GLAND FLANGE A 216 WCB A 217 WC6 A 217 WC9 IS 210 GR FG 200 A 351GR CF8 A 351 CF8M
07 STUD & NUTS ASTM A 193 GR. B7 / ASTM A 194 GR. 2H A 193 B16,A194 Gr.4/7
08 PACKING GRAPHITE RING, METALLIC WIRE REINFORCED PTFE
09 GASKET S.S.304 / S.S.316 SPIRAL WOUND GASKET WITH GRAFOIL FILLER PTFE
10 HAND WHEEL DUCTILE OR MALLEABLE IRON STAINLESS STEEL
11 YOKE A 216 WCB A 217 WC6 A 217 WC9 S.G. IRON A 351 GR CF8 A 351 GR CF8M

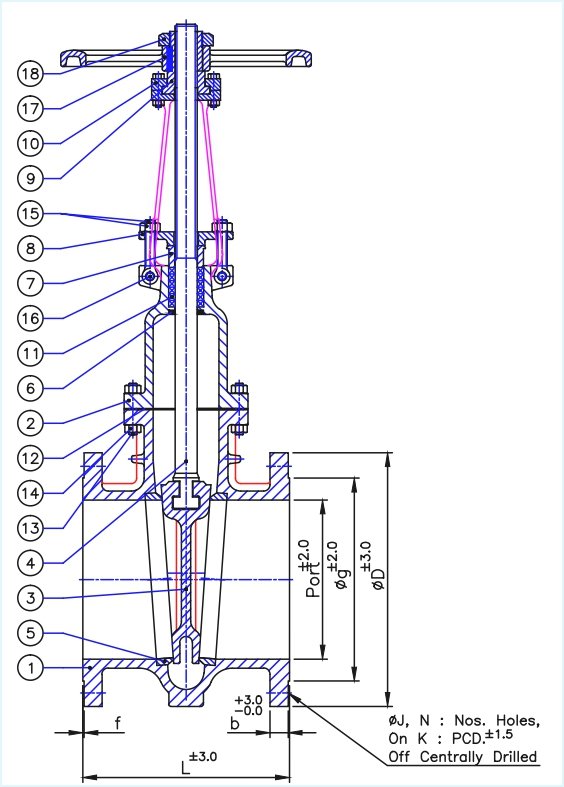

GATE VALVE DIAGRAM
